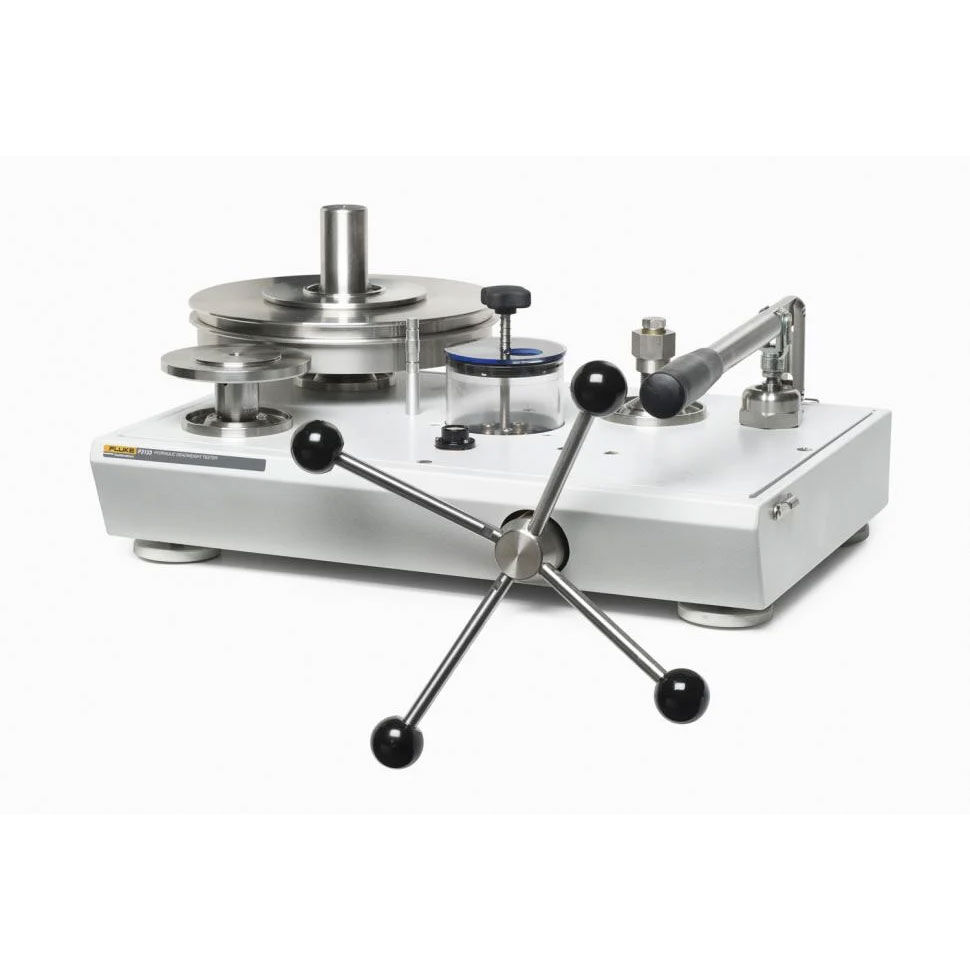

Fluke Calibration P3124-BAR Oil Operated Dual Range Deadweight Tester, 700Bar

The Fluke Calibration P3124-BAR Deadweight Tester is a precision primary standard designed to provide accurate, stable, and traceable high-pressure calibration. Covering a dual-range up to 700 bar (approx. 10,150 PSI / 70 MPa), this model uses precision piston-cylinder assemblies and calibrated mass sets to generate repeatable pressure points suitable for laboratory and industrial applications.

Its oil-operated hydraulic system ensures smooth, reliable operation and long-term stability, making it ideal for demanding calibration tasks in industries such as oil and gas, aerospace, power generation, and manufacturing. The P3124-BAR is rugged, easy to operate, and engineered for long-term durability, providing technicians with a trusted tool for calibrating a wide variety of high-pressure instruments.

Key Features

• Dual-range pressure: up to 700 bar (approx. 10,150 PSI / 70 MPa)

• Oil-operated hydraulic system for reliable high-pressure operation

• Precision piston-cylinder assemblies for primary standard accuracy

• Accuracy of ±0.015% of reading

• Rugged design suitable for laboratory and field use

• Compatible with interchangeable calibrated mass sets (bar, MPa, PSI, kgf/cm²)

Compatible media: Mineral oil or approved hydraulic calibration fluids.

Included accessories: Piston-cylinder assembly, dual-range calibrated mass set, hydraulic fluid reservoir, test connections, and operator manual.

Compliance: ISO/IEC 17025 traceable calibration; GLP/GMP compliant.

Benefits for Lab Users

• Provides precise, high-pressure calibration up to 700 bar

• Ensures repeatable, traceable results for critical applications

• Reduces measurement uncertainty

• Durable and easy-to-operate design for laboratory and industrial use
