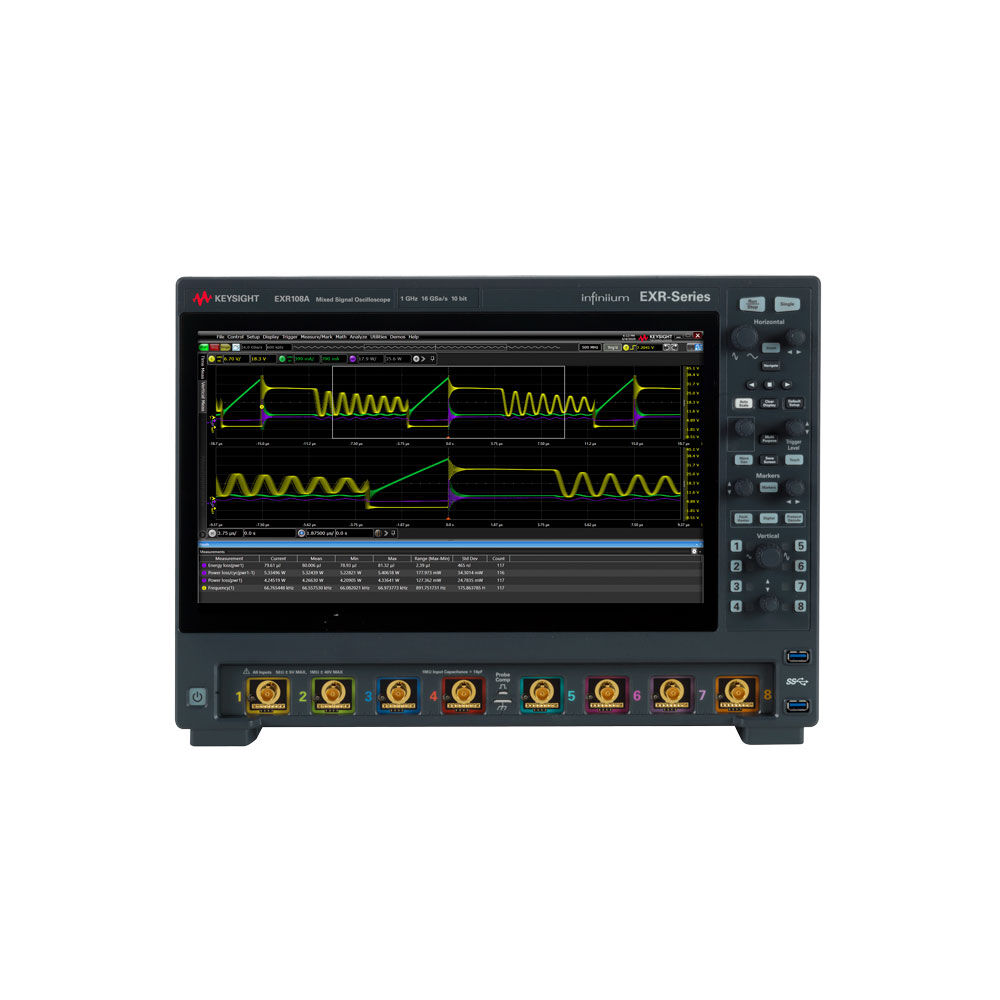

Keysight EXR108A Real-Time Oscilloscope, 1 GHz, 16 GSa/s, 8 Channel

The Keysight EXR108A is a powerful real-time oscilloscope from the Infiniium EXR Series, offering 1 GHz bandwidth, 16 GSa/s sampling rate, and 8 analog channels. Engineered for high-speed digital, embedded, and power applications, the EXR108A combines deep memory, high-resolution 12-bit ADCs, and advanced software tools to deliver accurate signal integrity, protocol decoding, jitter analysis, and compliance testing. With a large 15.6-inch HD touchscreen and intuitive interface, it provides engineers with a reliable and scalable solution for multi-domain debug and validation tasks.

Specifications:

Bandwidth: 1 GHz

Channels: 8 analog

Sample Rate: Up to 16 GSa/s

Vertical Resolution: 12 bits

Memory Depth: Up to 1.6 Gpts (option-dependent)

Display: 15.6-inch Full HD capacitive touchscreen

Waveform Update Rate: Up to 200,000 wfms/sec

Triggering: Edge, pulse width, runt, glitch, setup/hold, serial protocol triggers

Analysis Tools: Jitter and eye analysis, FFT, protocol decode (USB, CAN, SPI, I2C, etc.), power analysis

Connectivity: USB, LAN, HDMI, optional GPIB

Applications: Embedded system debug, high-speed digital design, RF validation, power integrity, serial compliance testing
