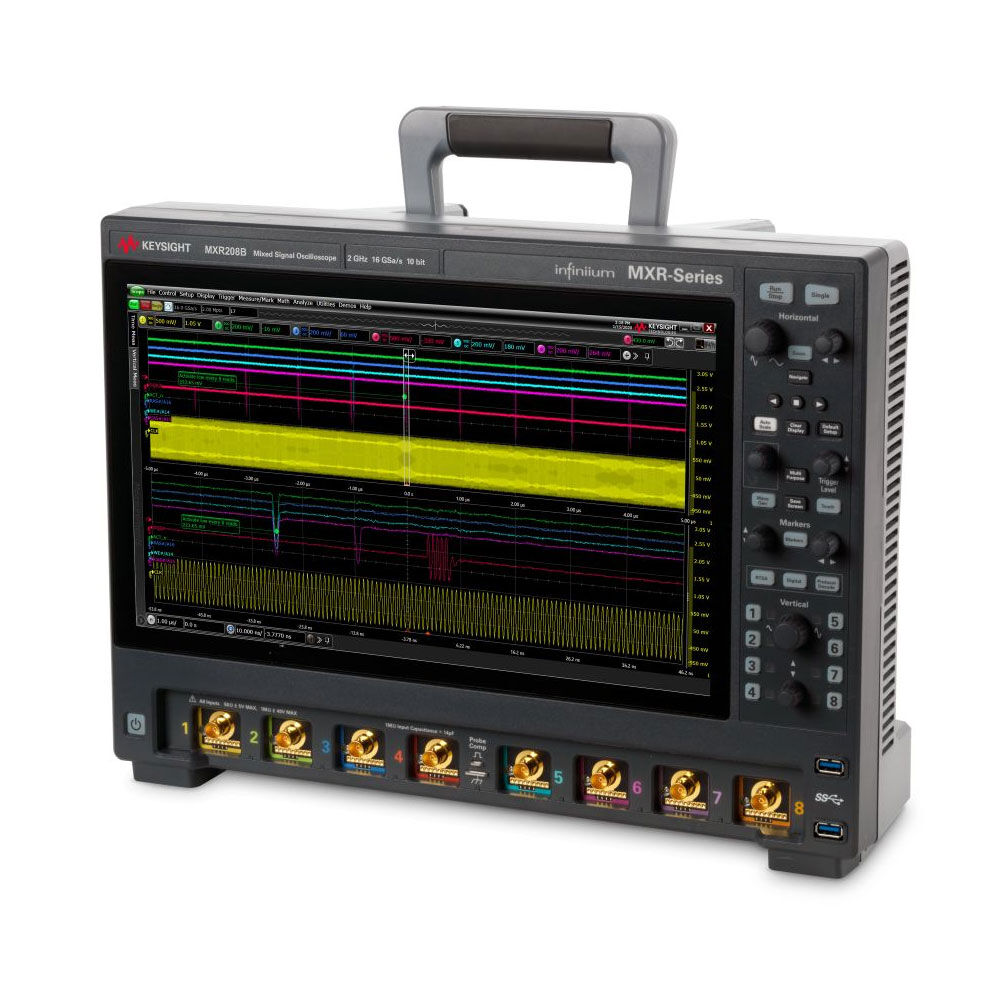

Keysight MXR208B Infiniium MXR B-Series Oscilloscope, 2GHz, 8 Channels

The Keysight MXR208B Infiniium MXR B-Series is a 2 GHz bandwidth, 8-channel real-time oscilloscope built for engineers who need reliable performance and deep visibility across multiple signals. With up to 16 GSa/s sample rate, 12-bit resolution, and a responsive 15.6” touchscreen, it delivers exceptional signal integrity and usability. Designed for embedded systems, high-speed digital, power, and RF applications, the MXR208B combines speed, accuracy, and flexibility—helping engineers accelerate development and debug across complex systems.

Specifications:

Bandwidth: 2 GHz

Channels: 8 analog

Sample Rate: Up to 16 GSa/s

Memory Depth: Up to 1.6 Gpts (option-dependent)

Vertical Resolution: Up to 12 bits

Display: 15.6-inch Full HD capacitive touchscreen

Waveform Update Rate: Up to 200,000 wfms/sec

Triggering: Edge, pulse width, runt, setup/hold, glitch, zone, serial

Analysis Tools: Protocol decode, eye diagram, jitter analysis, FFT, power integrity

Connectivity: USB, LAN, HDMI, optional GPIB

Applications: Embedded system debug, high-speed digital design, power electronics, RF analysis, automotive electronics
